Review B&K Precision 388BKIT Digital Multimeter with Test Lead Set
So you can check out the other reviews Rеvіеw B&K Precision 388BKIT Digital Multimeter with Test Lead Set at Amazon.com
only with $
| Brand | B&K Precision |
| Power Source | Electricity |
| Style | Digital |
| Measurement Type | Multimeter |
- Manual-ranging digital multimeter measures voltage, current, capacitance, frequency, and resistance, and performs logic, diode, and transistor common emitter gain (hFE) tests
- Average-sensing meter provides accurate readings when measuring linear loads where the current or voltage has a sinusoidal waveform
- Audible continuity sensor confirms that the circuit conducts electricity
- Fused current ranges protect the multimeter in high-energy environments
- Meets IEC safety standard 61010 and is certified for Category III installations up to 1000V
Product Description
The B&K Precision 388B digital multimeter (also known as a multitester) is an average-sensing, manual-ranging meter used in electrical testing applications to measure current, voltage, capacitance, resistance, and frequency, and perform logic, diode, and hFE transistor tests. The logic test reports the logic state of an electronic circuit. The hFE transistor test measures the common-emitter gain of a transistor. An audible continuity sensor confirms a circuit conducts electricity, and a diode test detects proper functioning of a circuit's diodes. A hold function keeps a reading on the display, even after the meter has been disconnected. The maximum hold function keeps the highest value for the session on the display. An alarm sounds when the test leads are connected to the wrong jack for the measurement being taken, and fused current ranges protect the meter in high-energy environments. The unit automatically turns off after 45 minutes of nonuse to conserve battery life, and a low-battery indicator signals when the meter's batteries need to be replaced. The meter's body is made of molded rubber, which helps protect it against damage from falls, impacts, and abrasion. The meter has a built-in tilt stand for propping on a flat surface. The kit includes a silicone 4mm sheathed straight-to-right-angle plug lead set, a red and black flexible pincer set, a probe body set with 2mm/0.080" diameter tips, a red and black alligator clip set, a hook-style test clip to 4mm banana jack, a trifold nylon pouch, and instructions.
This average-sensing, or average-responding, meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has an undistorted waveform. It is a manual-ranging meter that requires the operator to choose the appropriate operating range for the property being measured. The LCD has a 4,000-count resolution, meaning it can display up to 3,999 units (3-3/4 digits) before the operating range needs to be changed. It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category III installations up to 1000V, which covers items used with enclosed building circuit installations (such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply).
Specifications
| Maximum alternating current (AC) input | 10 amp continuous, 20 amp for up to 30 seconds |
| Maximum direct current (DC) input | 10 amp continuous, 20 amp for up to 30 seconds |
| Maximum AC voltage input | 750V |
| Maximum DC voltage input | 1000V |
| Maximum resistance detected | 40 megaohms |
| Maximum frequency | 4Mhz |
| Other tests | Transistor hFE, diode, and logic |
| Power supply | 9V battery (one, installed) |
| Safety ratings | European Conformity (CE) marking; Underwriter's Laboratory (UL); International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category III installations up to 1000V |
| Weight | 12oz./353g |
| Dimensions | 6.88 x 3.5 x 1.5 inches/175 x 89 x 38mm (H x W x D) |
H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Multimeters are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multimeters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multimeters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltage. Safety ratings are based on International Electrotechnical Commission (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.
B&K Precision manufactures test and measurement instruments for research and development, production-line testing, and electronic field service applications. The company, founded in 1951, is headquartered in Yorba Linda, CA. It meets International Organization for Standardization (ISO) standard 9001:2008 and is compliant with Restriction of Hazardous Substances (RoHS) and waste electronic and electrical equipment (WEEE) directives.

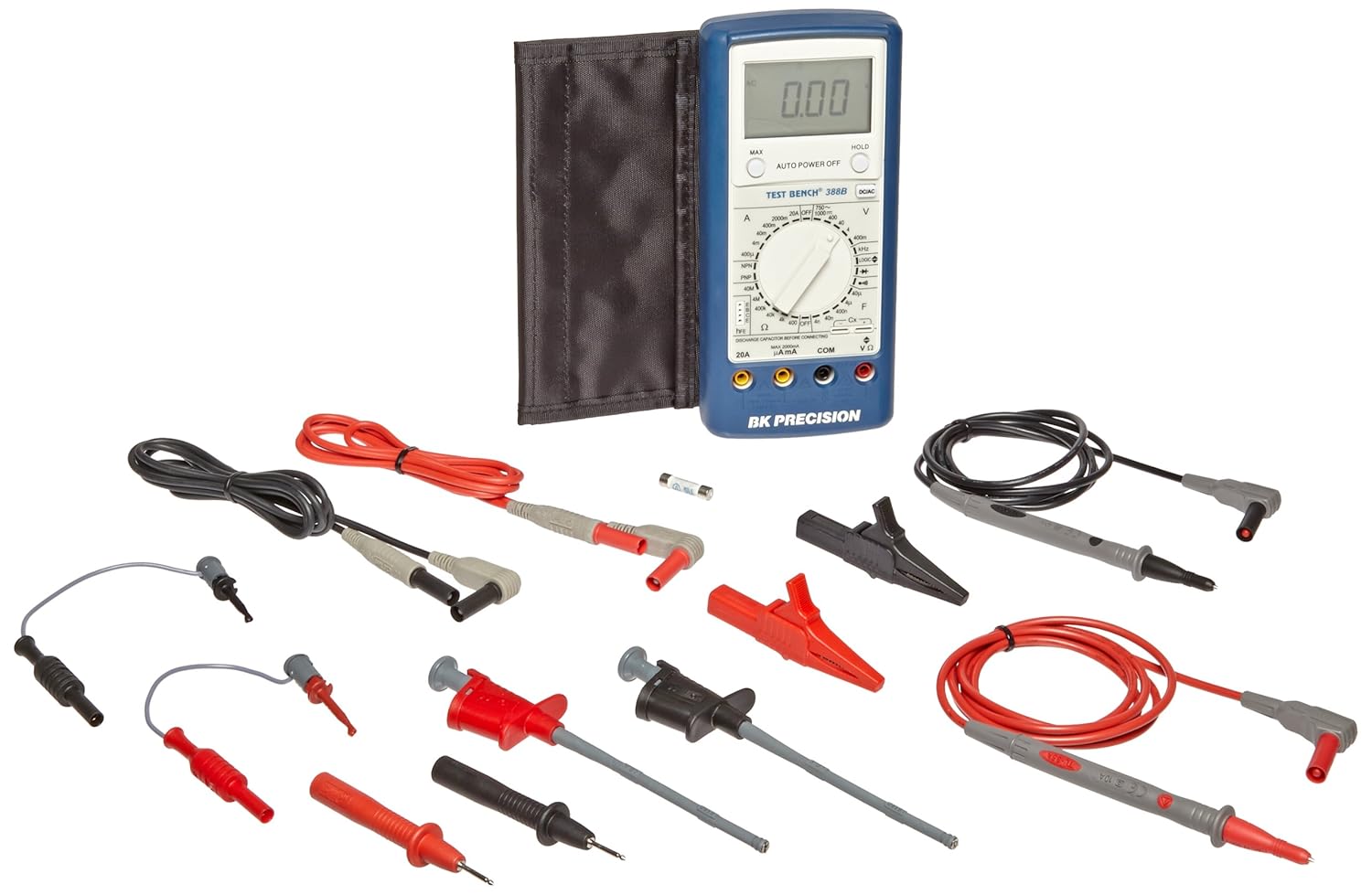

What's in the Box?
- B&K Precision 388B average-sensing digital multimeter
- 9V battery (installed)
- Silicone 4mm sheathed straight-to-right-angle plug lead set (1.5m)
- Flexible pincer set (red and black)
- Probe body set with 2mm/0.080" diameter tips
- Alligator clip set (red and black)
- Hook-style test clip to 4mm banana jack
- Trifold nylon pouch
- Instructions
